Chest

Aquilion Serve SP

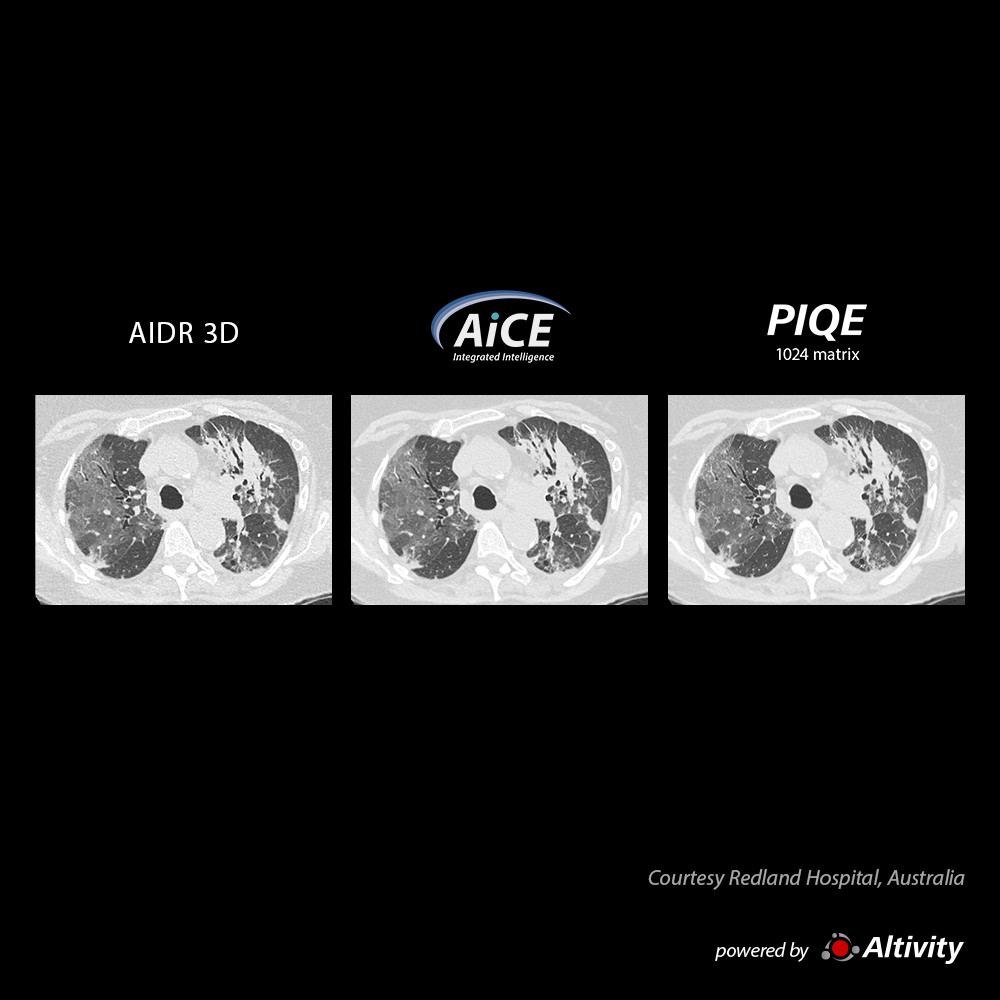

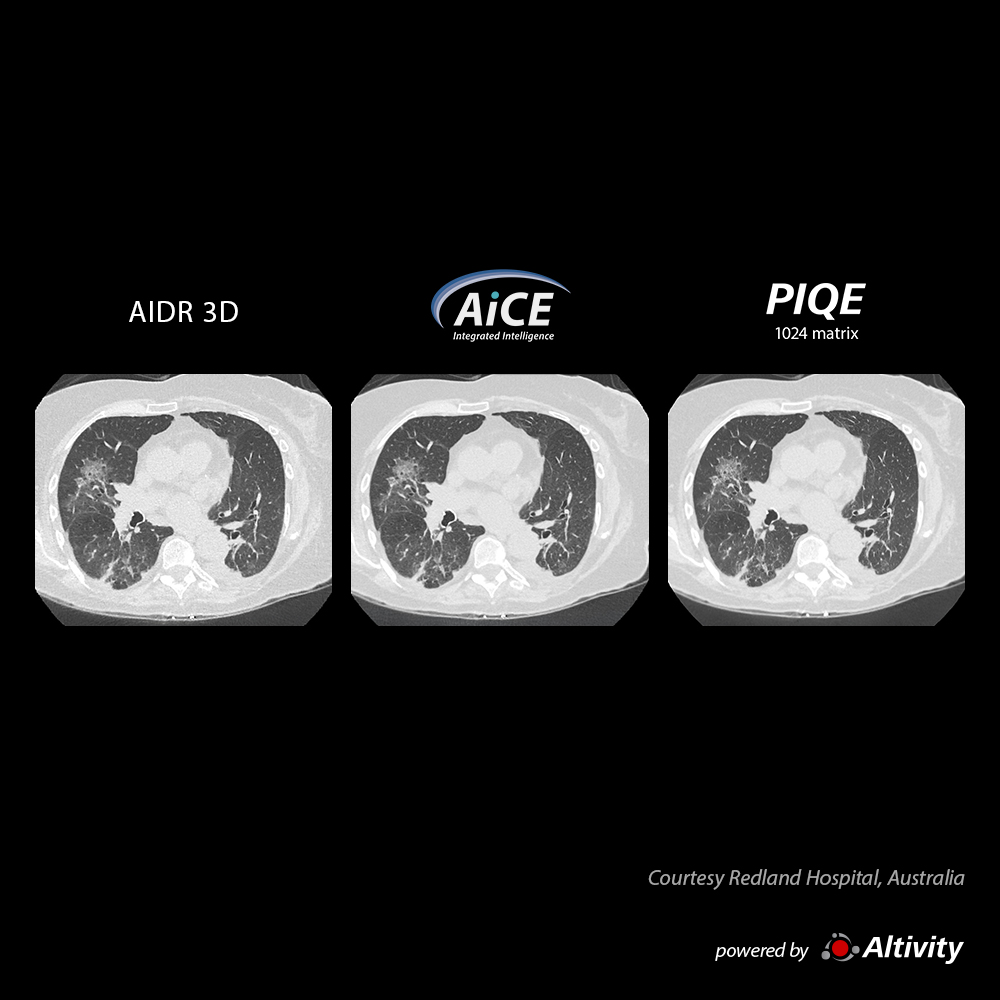

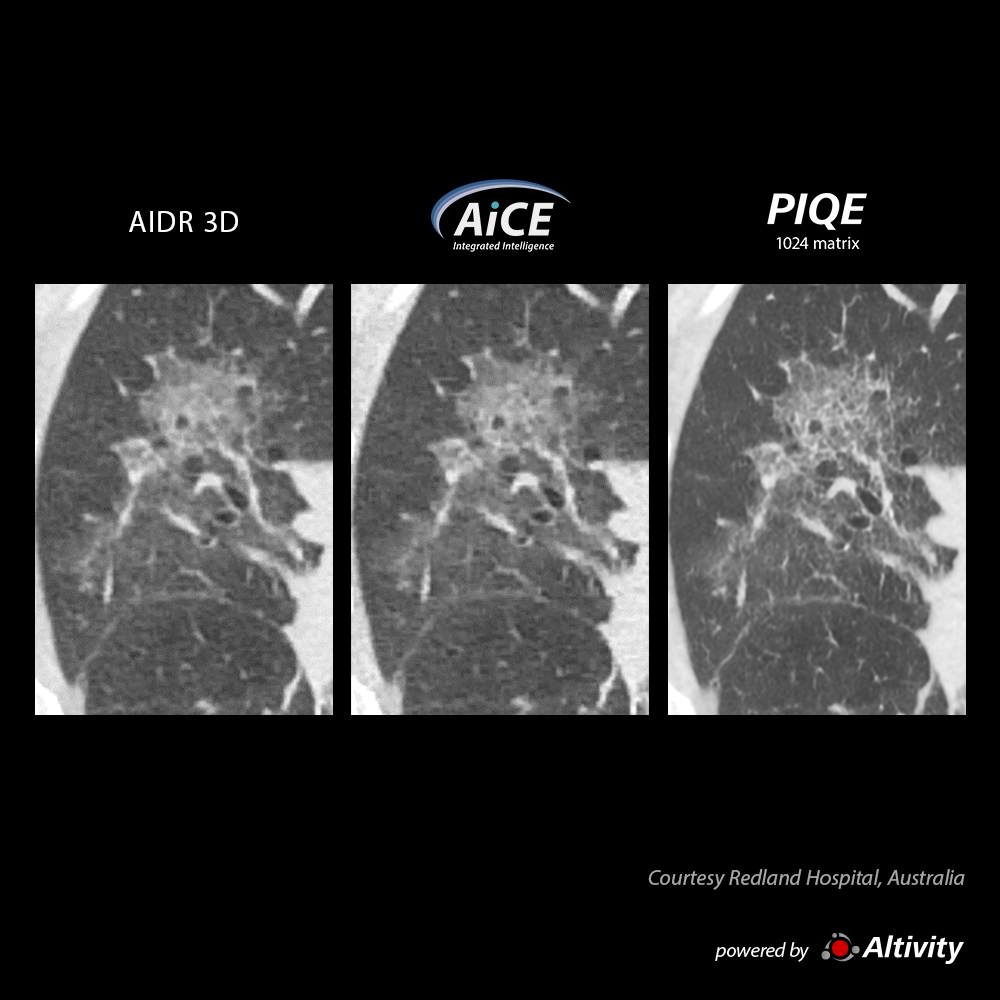

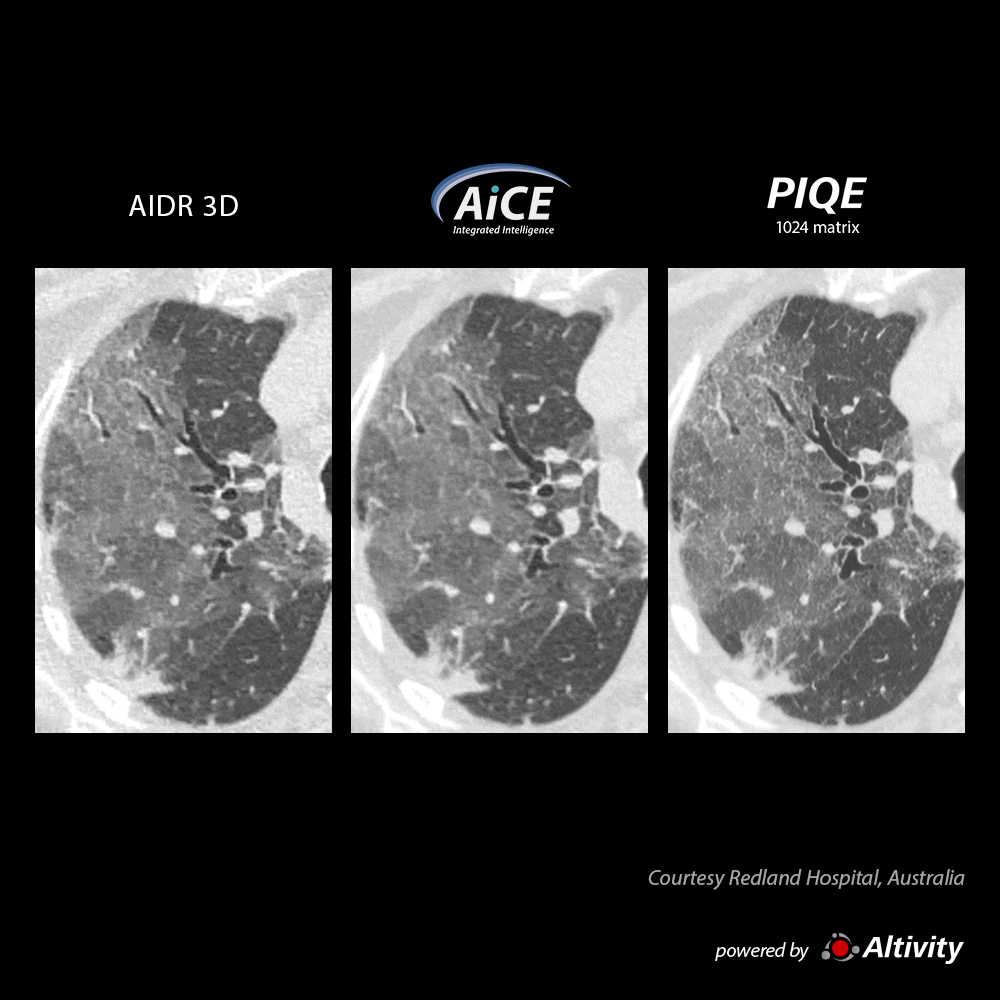

PIQE 1024 shows sharp borders of airways, ground glass opacities and fibrosis. PIQE Images can be zoomed without loss of resolution Courtesy Redland Hospital, Australia

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure 3D
Rotation Time 0.35s
Scan Range 280mm
Dose Reduction PIQE 1024
CTDIvol 6.6mGy
DLP 215.3mGy.cm
Effective Dose 3mSv
k-factor 0.014
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
Precise IQ Engine Venous Phase Chest
× 拡大画像

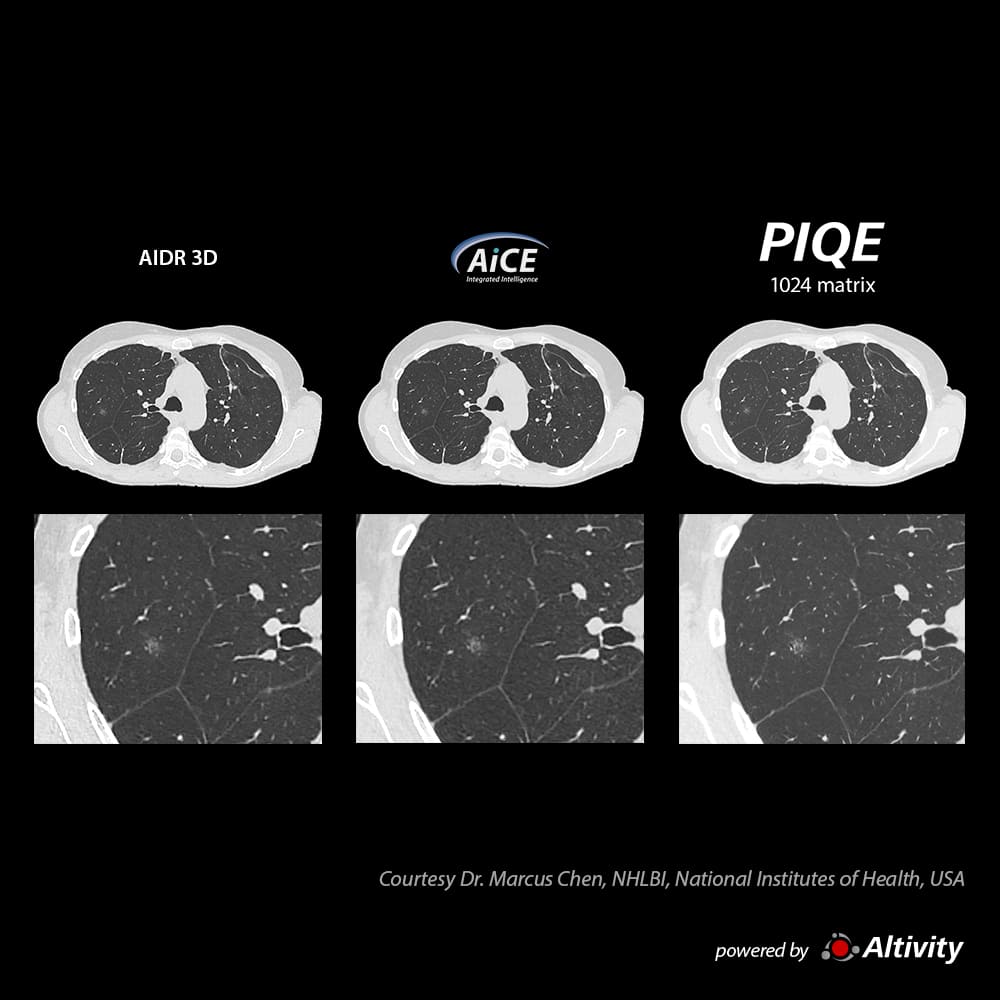

Ground Glass Opacity

A ground glass opacity is seen the lungs. PIQE provides excellent sharpness at 4x image zoom without loss of detail.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure 3D
Rotation Time 0.5s
Scan Range 620mm
Dose Reduction PIQE 1024
CTDIvol 3.7mGy
DLP 246.7mGy.cm
Effective Dose 3.4mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase
Precise IQ Engine Venous Phase
× 拡大画像

Precise IQ Engine Venous Phase

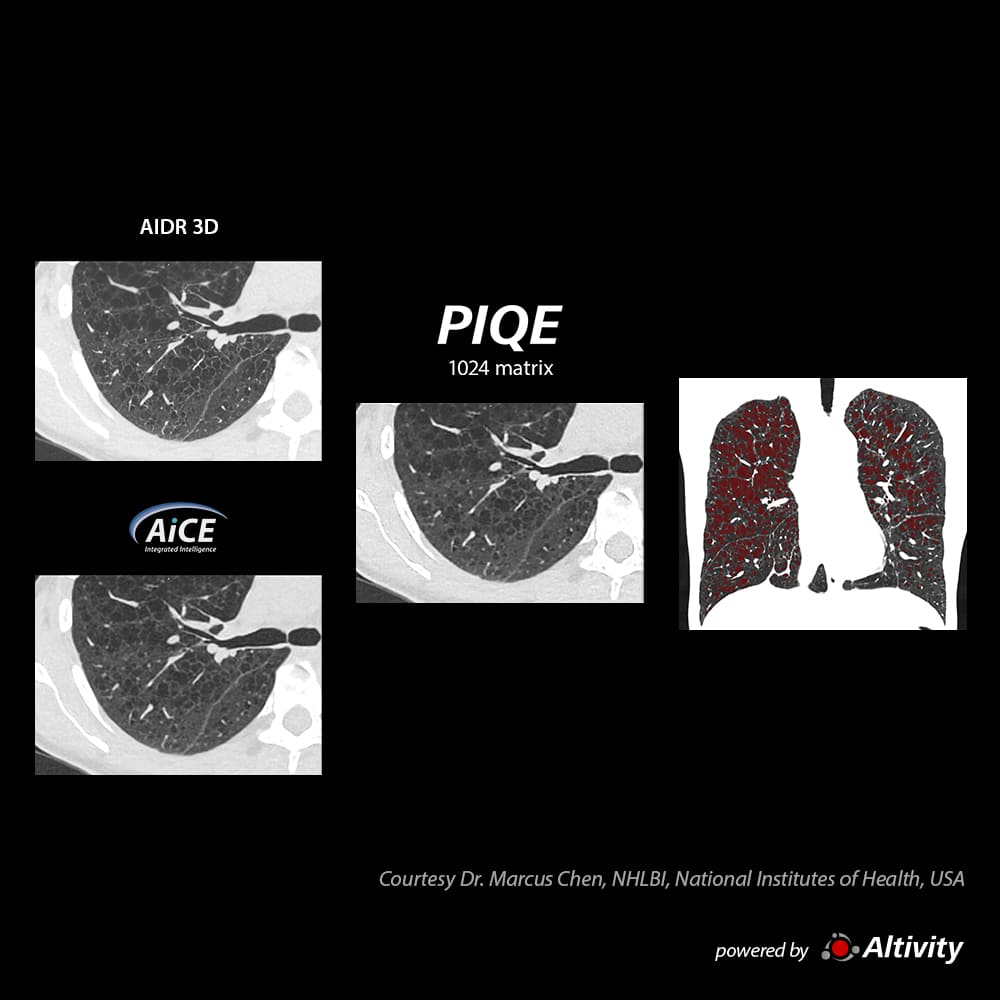

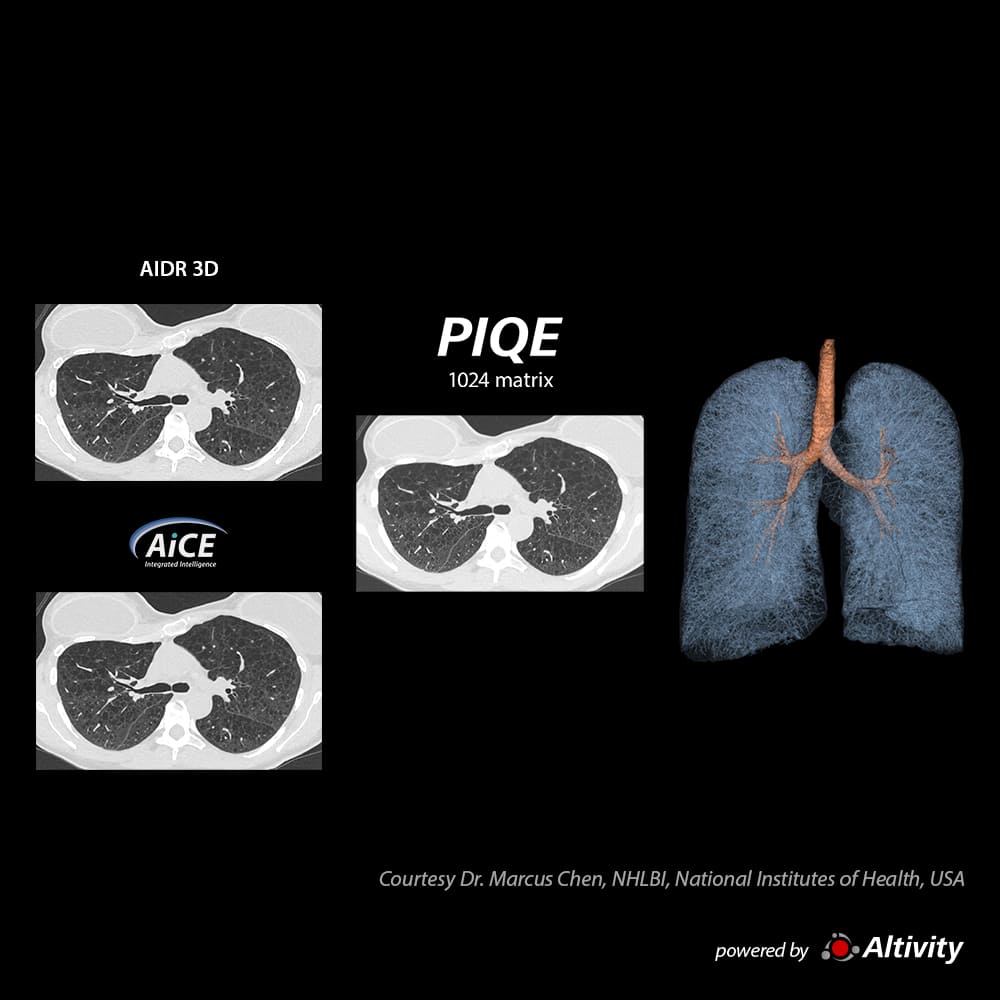

Precise IQ Engine (PIQE)

View Scan Parameters

Scan Mode Volume
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure 3D
Rotation Time 0.5s
Scan RangeSUREExposure 3D 666mm
Dose Reduction PIQE 1024
CTDIvol 3.5mGy
DLP 132.7mGy.cm
Effective Dose 1.9mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase
Precise IQ Engine Venous Phase
Precise IQ Engine Venous Phase
Precise IQ Engine Venous Phase
× 拡大画像

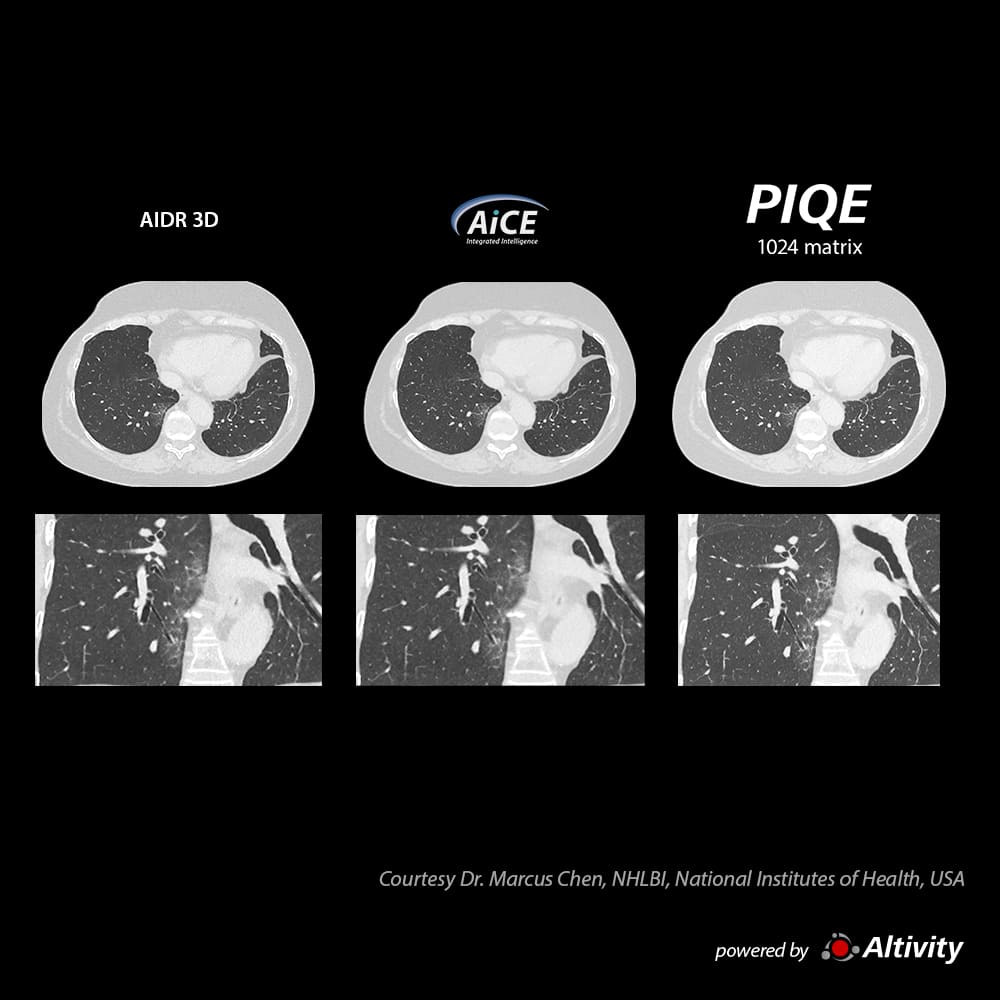

Fibrosis

With PIQE the fibrosis is seen in excellent detail compared to Hybrid iterative Reconstruction and deep learning reconstruction.

View Scan Parameters

Scan Mode Ultra Helical
Collimation 0.5 mm x 80
kVp 120
mAs SUREExposure 3D
Rotation Time 0.5s
Scan Range 636mm
Dose Reduction PIQE 1024
CTDIvol 4.6mGy
DLP 308.9mGy.cm
Effective Dose 4.3mSv
k-factor 0.014 (AAPM Report 96)
Precise IQ Engine Venous Phase
Precise IQ Engine Venous Phase
